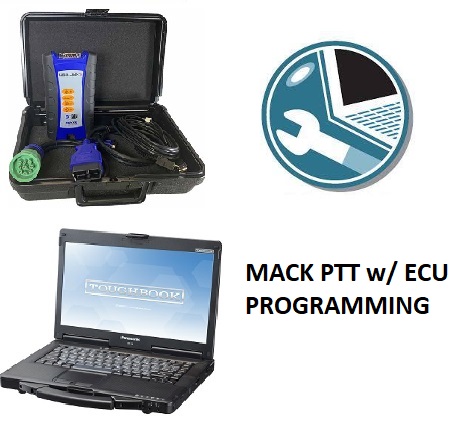

Official OEM Software Package - a must have for MACK technicians. A toolbox that bundles diagnostic (VCADS) and repair applications (Guided Diagnostics) together making it a one stop shop for the technicians. The main purpose is to support the diagnostic & repair process and to make it easier for technicians to work with the tools provided. Provides access to Vehicle and Parameter Programming, Service Information and Diagnostics.

FEATURES:

• OEM software supports 1998 and newer vehicles.
• Includes: One seat/user license for the OEM Software to service Mack trucks.
• This software will communicate with Mack vehicles, with the proper interface device (adapter).
• Read / Interpret Fault Data
• Extensive Diagnostic Tools
• Facilitates Update Process
• Clear & read all diagnositc trouble codes including emissions related ReGen codes.
• Perform Calibrations
• Modify Injectors/Trim Codes
• Parameter Programming
• ECU/ECM Programming
• Aftertreatment Control Module (ACM)

NOTE: MID130 programming is available on US2007 and US 2010 emissions vehicles.

IMPORTANT INFORMATION:

• This software can only be registered to users in the USA & Canada!
• Shipping Lead Time: Shipping lead time for this software is 2-10 business days. When the software is ready to ship, we will ship by whatever method you have specified.
• An e-mail address is required. When ordering, use the email address that you would like associated with your account. After purchasing, you will receive an email containing your software password.
• Premium Tech Tool Software USB comes with one year of free upgrades, from the date of purchase. After the first year, subscription renewal is $800.00 per year.

NOTE: Once the Software is registered to the End-User, the Software/Package becomes UNRETURNABLE.

MACK SYSTEM REQUIREMENTS:

• 32 or 64 bit Processor - Intel Core Due 1.6 GHz equivalent AMD Athlon 64 X2
• Operating System for PTT
  • Windows 10 Professional or Enterprise - 32 or 64 bit
  • Windows 11 (recommended)
• System Memory (RAM) - 3.0 GB (more memory improves performance)
• Hard Drive - 20 GB Free Hard Disk Space
• Removable Storage - DVD-8X drive or faster
• Video Monitor - XGA (1024 x 768 pixels) or higher resolution monitor with 16 bit color
• Internet connection using 10 Mbps or higher speed network adapter and/or WLAN and/or 33.6Kbps or higher speed modem (not support for Win 7/8 clients)
• Keyboard and mouse or compatible pointing device

• Latching USB Cable (PN 404032)
• 9-Pin Deutsch Adapter, 1 Meter (PN 493128)
• J1962 Adapter (16-Pin OBD II, 1 Meter (PN 491113)
• Quick Start reference Guide
• Drivers are downloaded from Nexiq website
• ​VEHICLE NETWORK PROTOCOL SUPPORT:
  • CAN FD / J1939 FD / ISO15765 FD - 250K, 500K, 1M b/s with auto baud detection
  • Single wire CAN (SWCAN)
  • ISO 11898-3 Fault Tolerant CAN (FTCAN)
  • Diagnostics Over Internet Protocol (DoIP)
  • J1708
  • J1850 VPW (Class 2)
  • ISO PWM (SCP)
  • ISO 9141 / KWP2000 (ISO 14230) K/L line
  • ALDL 9600 and 8192 baud
  • ATEC 160 baud
